Gigabyte X870E Aorus Pro X3D Ice: A motherboard with a lot of features for the AM5 platform

A premium AM5 motherboard loaded with next-generation features, exceptional cooling design, and extensive connectivity for high-performance PC builds.

Hardware by RereRara on Oct 29, 2025

The new Gigabyte X870E Aorus Pro X3D Ice is a big update to the X870 refresh. It costs about $449. This board keeps up Gigabyte's tradition of high-end design and performance by offering the latest connectivity, a sturdy build, and ample room for upgrades.

It works with AMD's AM5 socket and supports Ryzen 7000, 8000, and even the upcoming 9000 series processors. This makes it a great base for high-end gaming and productivity builds that will last for a long time.

Gigabyte X870E Aorus Pro X3D Ice, A motherboard with a lot of features, AM5, NoobFeed

Accessories

The X870E Aorus Pro X3D Ice comes with everything you need for a high-end motherboard, including the motherboard itself. Gigabyte pays attention to the small things, like providing documentation, a set of stickers, and a few other items.

There is a small VRM cooling fan that can be attached to the board with the right screws and fittings. It also comes with a sleek metal case badge, which is a small but nice touch.

Gigabyte also gives you SATA cables for regular 2.5-inch SSDs and 3.5-inch hard drives. The G Connector is another useful addition that makes it easier to install front panel cables in cases that don't have a combined wiring block.

This motherboard comes with a small microphone that listens for sounds inside your case and adjusts fan speed as needed. You'll also find the antenna for the built-in Wi-Fi 7 module, ensuring stable, fast wireless internet access.

Design and Connectivity

The full-cover heatsinks and clean silver-white theme of the X870E Aorus Pro X3D Ice make it look great. There are many ways to connect things to the board. There are two 3-pin 5V addressable RGB headers, a 4-pin 12V analogue RGB header, and two USB 2.0 headers along the bottom.

These are great for AIO coolers or old devices. It also has two USB 5Gb type-A front panel headers, a 20Gb right-angled USB type-C connector, and four SATA ports for more storage.

Gigabyte has added an extra PCIe power connector to increase the PCIe bus's power. This is a nice touch for people who use GPUs or add-in cards that need a lot of power. The motherboard also has many PWM fan headers that are easy to see and organise, making it easy to set up different cooling systems.

There is another 3-pin RGB header and four more fan headers on the top right. Two 8-pin EPS connectors on the board provide clean, stable power to high-performance Ryzen CPUs, even X3D models.

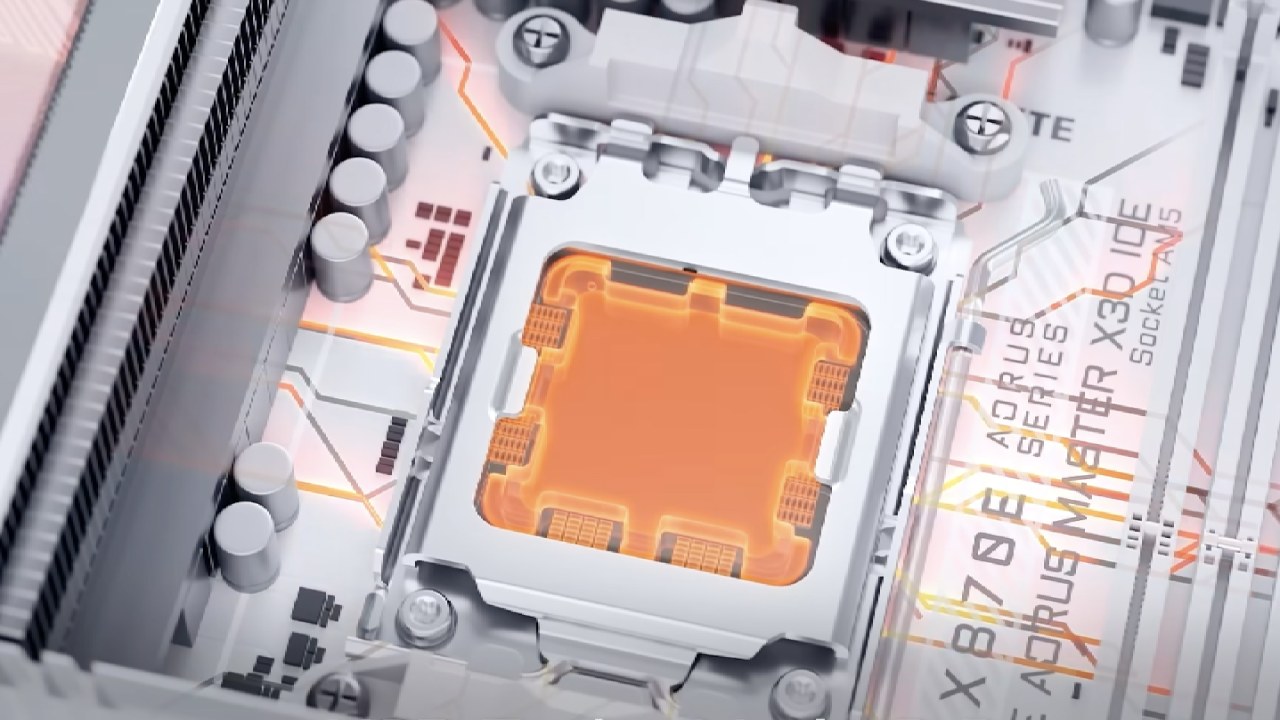

PCIe and VRM Layout

The Pro X3D Ice has a PCIe Gen5 x16 slot at the top and two more x16-sized slots below it: one Gen4 x4 slot and one Gen3 x2 slot. The top slot features a quick-release latch system that makes it much easier to remove the GPU. This is very useful for people who often change or test parts.

Gigabyte has given the board an 18+2+2-phase twin-digital VRM design with 110A smart power stages to deliver power. The large heatsinks around the socket help dissipate heat quickly, and the I/O cover is also part of the cooling system. The overall design of the VRM ensures strong, stable power delivery, which is great for overclocking and long-term performance stability.

Gigabyte X870E Aorus Pro X3D Ice, A motherboard with a lot of features, AM5, NoobFeed

Memory and Storage

The X870E Aorus Pro X3D Ice can reach up to 9000 MT/s when conditions are right. It has four DIMM slots that can hold up to 256GB of DDR5 memory. It is unlikely to reach that speed at full capacity, but the flexibility is impressive.

The board has four M.2 slots for storage: two PCIe Gen5 x4 slots and two PCIe Gen4 x4 slots. Quick-release heatsinks cover each slot, making them easier to reach and improving cooling. The tool-less design lets users install or swap M.2 drives with just a finger latch, which is a small but very useful improvement in quality of life.

The back of the board has a full-cover backplate that not only looks good but also helps the board cool down. Gigabyte uses an 8-layer server-grade PCB to make the board more durable, less prone to interference, and better at managing heat.

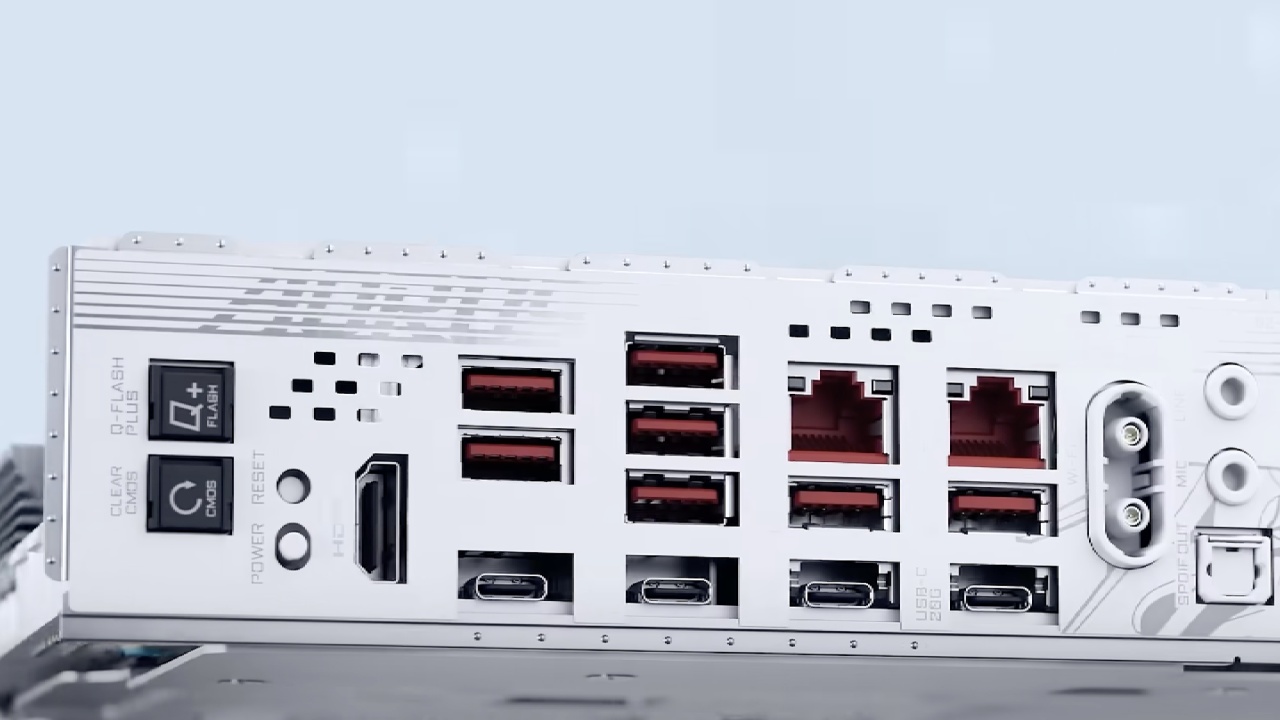

Features for the rear I/O

The X870E Aorus Pro X3D Ice's back I/O is very well-equipped. It has an HDMI 2.1 port for built-in graphics output, a set of dedicated power and reset buttons (a feature not often seen on Gigabyte boards), and a Q-Flash button for easy BIOS updates. There are also many USB ports on the back panel, including USB 3.2, two 40Gb type-C ports, and several 10Gb type-A and type-C ports.

A 5Gb Ethernet port handles networking, and modern high-speed connectivity is available via Wi-Fi 7 and Bluetooth 5.4. There are optical S/PDIF out, microphone, and line-out jacks for the audio setup, which deliver clear, strong sound.

Performance and Thermal Design

This board does a great job with thermals. Gigabyte uses a lot of heavy aluminium heatsinks to keep the VRMs and M.2 drives cool even when they're under heavy load. The small VRM fan mount and the rear I/O vent are two more ways that the cooling-first approach is shown.

The board's AI-powered fan tuning, which uses the included acoustic sensor, keeps airflow quiet and efficient by adjusting fan speeds based on noise inside the case. This feature is especially appealing to builders who want their machines to run quietly without losing performance.

Gigabyte X870E Aorus Pro X3D Ice, A motherboard with a lot of features, AM5, NoobFeed

Final Thoughts

The Gigabyte X870E Aorus Pro X3D Ice is a high-end, feature-rich motherboard for AMD's AM5 platform, priced at $449. It has a great design, build quality, and connectivity options, making it a great choice for people who want a board that can handle top-of-the-line CPUs and a lot of fast storage devices.

We really like the power and reset buttons on the back, which make it much easier to test and fix problems. Gigabyte's dedication to user-friendly design is clear in the many fan headers, quick-release mechanisms, and full RGB support.

One thing that stands out, though, is the lack of 10Gb Ethernet. In 2025, when 10Gb chips are cheap and widely available, settling for 5Gb would be a missed opportunity. This limit may be disappointing for people with high-speed networks, but you can get around it with a $39 add-in card.

The Gigabyte X870E Aorus Pro X3D Ice is a great all-around AM5 motherboard. It delivers strong power, a sleek design, next-generation connectivity, and user-friendly features, making it one of the most complete X870 refresh options on the US market today.
